Combining the IPL, an OS image (IFS) created by mkifs and a flash filesystem image
created with mkefs can be useful or even required.
In particular:
- Some boards will only accept a single image, so the OS image and any other other images must be
combined before they are transfered to the target board.
- A single image can simplify manufacturing of systems once they go into production. Copying a single
image is simpler, faster and less susceptible to error than copying multiple images.

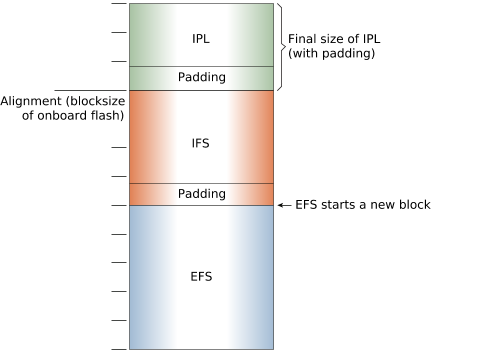

Figure 1. The IPL, OS image and flash filesystem combined into a single image. Note the padding used to
align the different image components. with the block sizes required by the board.
Combining the images
To enable configurations like the one above (XIP, and run in RAM), create two, separate images, then
combine them. You can use the diskimage utility to create a single, combined image
for a partitioned medium, such as a hard drive, SD card, or MMC on your host, then transfer the image to
your target (see
diskimage
utility and
diskimage configuration file
in the Utilities Reference, and your BSP User's Guide).
The boot image filesystem will be run from RAM to improve performance, and the XIP image filesystem will
be run from flash to conserve RAM.
Note:
- Each section of your combined image (IPL, IFS (XIP), EFS (run in RAM) must begin at a memory
page boundary (typically 4 KB; see the diagram above).
- The IPL code will hand execution to the startup code and OS in the first image.
Instead of using diskimage, you can use a hardware flash or EPROM programmer to burn
the separate images with appropriate alignment, or other utilities, such as:
Note: QNX recommends that you use diskimage to combine images.
For another approach to mounting a secondary image filesystem, see the
Reloadable Image Filesystems
technote.
Restrictions to using XIP
The following restrictions apply to XIP image filesystems:
- The board must support XIP.
- The IFS must be uncompressed and stored on linearly-mapped media.
- The IFS may not reside in NOR flash where there is a flash filesystem driver running for that same
flash array (because the flash driver will occasionally put the flash in a mode where it can't be
read as data).
